Sheet metal bending is a fundamental and versatile manufacturing technique in the metal fabrication industry. Sheet metal bending helps manufacturers create unique curves and angles of metal parts from the metal sheet. Though the idea of sheet metal bending is straightforward, the process is complex and requires a deep knowledge of the materials, sheet metal bending machines and accurate know-how about the process.

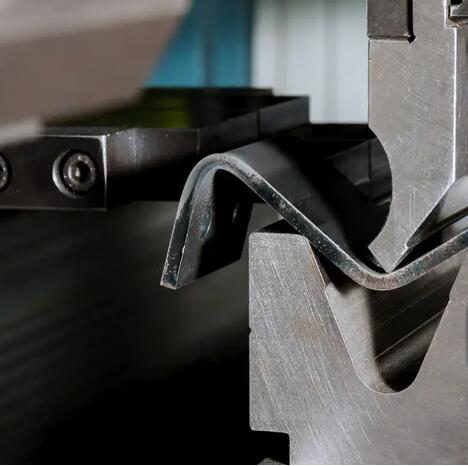

Sheet metal bending is a process that is used in the sheet metal fabrication industry to manufacture metal parts. In the metal bending process, manufacturers create a force on the metal sheet to deform it and produce different shapes of metal parts. Custom sheet metal bending is a popular technique among manufacturers as it allows them to manufacture versatile shapes and designs of metal parts. The quality of metal bending depends on its material thickness. The suitable metal thickness for doing metal bending is between 0.25 mm- 12.7 mm. There are also many kinds of sheet metal bending processes available, manufacturers need to select the metal bending process that will serve their purpose.
As sheet metal bending is used in different industries, it is also known by different names in different industries according to its applications.
Here are a few other names for sheet metal bending:
Press brake bending
Metal edging
Metal folding
Metal forming
Metal bending
Sheet metal bending helps manufacturers to create complex geometries of metal parts. With the metal bending process, manufacturers can make various angles and crave shapes from metal sheets. From simple designs to complex designs sheet metal can form anything. This flexibility of designs makes it a crucial metal fabrication method in the manufacturing industry.
Sheet metal bending is flexible for choosing materials for the process. Manufacturers can conduct metal bending on a wide range of materials. Alloy, metal, steel, aluminum, and copper all are suitable materials for the sheet metal bending process. Manufacturers can select the material that will be suitable for manufacturing their metal parts with JCLDD sheet metal material selection.
The sheet metal mending process creates enormous force and stress on the metal sheet. This hardens the materials and increases the strength and rigidity of the finished metal parts. As a result, bent metal parts' strength and durability are more than the flat metal sheets.

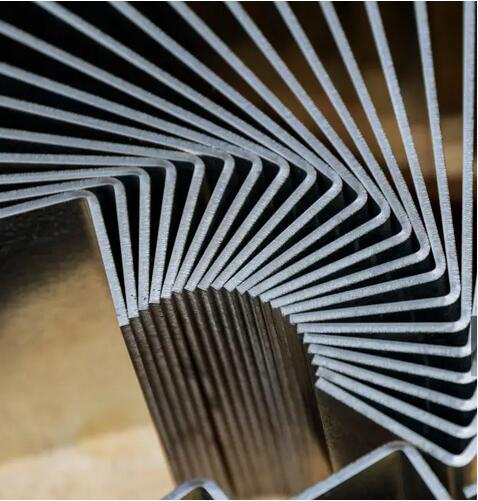

As already discussed sheet metal bending allows manufacturers to produce different shapes of metal parts, and it helps them to manufacture customized metal parts. It is also easy to modify any design changes in the metal bending process. Manufacturers just need to adjust the bend angle to meet design specifications.
Sheet metal bending is suitable for large volumes of production. While doing metal fabrication of a large volume of metal parts, using metal bending will streamline the whole manufacturing process. By using automated bending machines manufacturers can bend a large number of metal parts in a short time.
Sheet metal bending is a suitable manufacturing technique when manufacturers are looking for cost-effective solutions. Metal bending is more cost-effective and budgetable compared to other sheet metal fabrication techniques. The tools and metal bending machines used in the process are not expensive and also save materials and other resources that save costs
Sheet metal bending is the perfect choice for doing rapid prototyping. Manufacturers can quickly produce metal parts for prototypes, test the design and modify the design rapidly. This will allow manufacturers to prepare the final product and launch it at an exact time.
Sheet metal bending is the perfect choice if the manufacturer wants to reduce secondary metal processing. Manufacturers can integrate sheet metal bending with other metal fabrication processes which eliminates the need for secondary operations. Manufacturers can integrate sheet metal bending processes with stamping, sheet metal welding services and sheet metal cutting services. This not only increases the efficiency of the manufacturing process but also saves money and time.
Sheet metal bending can give a unique and aesthetic look to the metal parts. Metal bending allows manufacturers to create smooth curves and precise angles. This increased smooth and perfect finish makes the bent metal parts more visually appealing.
By using sheet metal bending manufacturers can make metal parts with accurate dimensions. Sheet metal bending tools and automotive machines help to maintain the dimensional accuracy of all bent metal parts.
In sheet metal bending manufacturers can utilize the full flat metal sheet and control material wastage. As in the bending process, cutting the metal sheet is not required, one can bend the metal sheet and utilize it at its most.
The surface finishing of sheet metal bending is smooth. Unlike other metal fabrication processes, metal bending doesn’t damage the originality or smoothness of the metal parts.
Sheet metal bending helps to manufacture lightweight metal parts. Metal bending is perfect where lightweight metal parts are required like aircraft. Using lightweight metal parts reduces the overall weight of the equipment or applications, it will increase the efficiency.
Sheet metal bending makes the metal parts appropriate for fitting into the larger assemblies. Bend metal parts can easily align and fit with other metal parts.
Sometime after conducting the sheet metal bending process, it can spring back. Springback means a metal sheet can get back to its previous form. This can affect both the geometrical accuracy of the metal parts. It can also affect the productivity of the manufacturing process.
Sheet metal bending can create defects in the metal parts. If the manufacturers aren’t aware of the parameters, and process of metal bending, then they can create defects. If the metal bending process isn’t conducted carefully, then it can create cracks, and wrinkles on the metal sheet.
The sheet metal bending process has limitations on the material thickness. This process finds it challenging to deal with too thin or too thick materials. To conduct metal bending on these kinds of materials needs specialized equipment process and equipment.
Sheet metal bending machines and tools like die sets, and press bakers wear off easily with time. But for product quality metal parts well condition tools are needed. For this reason, manufacturers need to maintain the sheet metal bending tools consistently which wastes both money and time.

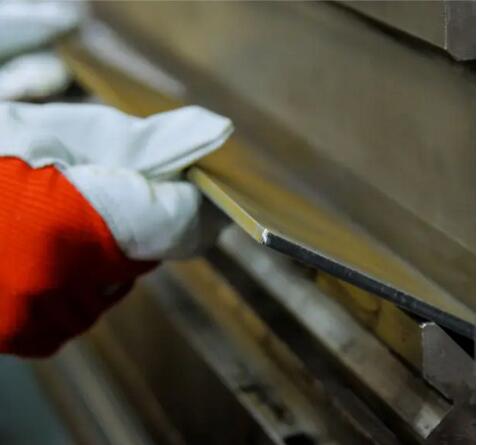

The sheet metal bending process starts with material selection. For selecting the right materials manufacturers need to consider factors like metal thickness, strength, rigidness and alignment with the application.
First, manufacturers need to prepare the stamping mold design for the metal parts. Then metal blends angles, shapes, and radii. Manufacturers also determine the geometrical dimension and radius of the blend before starting the process.
Before conducting the metal bending process, operators need to select and set up the sheet metal bending machines and tools. Tool and equipment selection depends on the bending method and material thickness.
In manufacturing accurate metal parts it’s crucial to prepare the materials first. To prepare the material, first clean the metal sheet, measure it and then mark the point where the operator will create the bend. Sometimes manufacturers also do pre-bend so that the final bending operation occurs smoothly.
After preparing the material, the sheet metal bending process will start. For that, place the sheet metal on the metal bending machine. Then with the help of sheet metal bending tools and machines create force on the metal sheet and bend it. Give the desired shape and angle to the bend components in the process.
After completing the bending operation, the operation needs to inspect the quality of the bent metal parts. In this process, the team needs to check the surface quality, dimensional accuracy and bend angle quality. Also, need to check if there are any defects like wrinkles or cracks on the metal parts.
While conducting the metal bending operation, operators may need some adjustments to make the sheet metal bending more effective. For manufacturing consistent metal parts change in bend speed or tooling adjustment may be required.
Sometimes after completing the metal bending additional operations may be required to meet the industry standard. Before finishing the metal bending operation like surface treatment, painting can increase the strength and ductility of the metal parts.
In the press brake sheet metal bending process, operators use a press machine with a punch and die tool. This metal bending process is suitable for creating straight lines and complex metal shapes. This process is mostly used in industries like automation and aerospace.
In this roll sheet metal bending process, the operator will put the metal sheet in a series of rollers and each roller will have different diameters. These rollers will help to create a bend on the metal sheet. This process is suitable for long-length material and for multiple bends.
In the air sheet metal bending process, operators will use compressed air to create a force on the metal sheet. This process is more suitable for gentle bends and on materials that are sensitive to scratching. Air bending is mostly used for manufacturing agricultural or decorative metal parts.
In the joggle bending process, the sheet metal bending machine creates a force on the metal sheet and creates an “S” or “Z” shape. This process is mainly used in the metal fabrication industry and is suitable for creating multiple metal bends.
The sheet metal bending process deforms the sheet metal through sheet metal bending tools without cutting or removing any material. In this process, any material doesn’t get wasted. But other sheet metal fabrication processes like welding, laser cutting or punching remove or cut material to do metal joining.
The sheet metal bending process is suitable for both thick and thin materials. Just the operators need a specialized sheet metal bending machine and technique for doing the process on too thin or thick materials. On the other hand metal fabrication processes like deep drawing, and metal stamping have limitations on material thickness.
The sheet metal bending process allows manufacturers to create complex shapes of metal parts. Manufacturers also can create a versatile shape using the metal bending technique. That’s why sheet metal bending is popular for creating complex geometrical shapes. However many other metal fabrication processes aren’t capable of creating complex designs.
The sheet metal bending process uses cost-effective and more simple tools and equipment compared to other metal fabrication processes. The tools for metal bending are mainly selected depending on the bending method. But some commonly used tools are press brake and roll bender rollers. Other metal fabrication processes like stamping, and deep drawing require more expensive and specialized equipment
To make the metal bending process successful, first manufacturers need to select the right material that has all the properties for the required application.
Before starting the sheet metal bending process always consider the bend allowance. Calculate the bend radius before starting the process so the manufacturer can choose the metal size according to that.
Different bending methods require different tools. Tools usage can also differ depending on the material type and thickness. Select the right tools and equipment for the sheet metal bending process.
For conducting the sheet metal bending properly without causing any damage to the metal sheet, it’s crucial that the operator align the metal sheet with the back gauge. It also ensures that the dimensional accuracy is consistent in all the bent metal parts.
Train the operators beforehand. It’s necessary that operators are aware of the metal bending process and sheet metal bending equipment. Otherwise, they can cause damage to the bent metal parts.

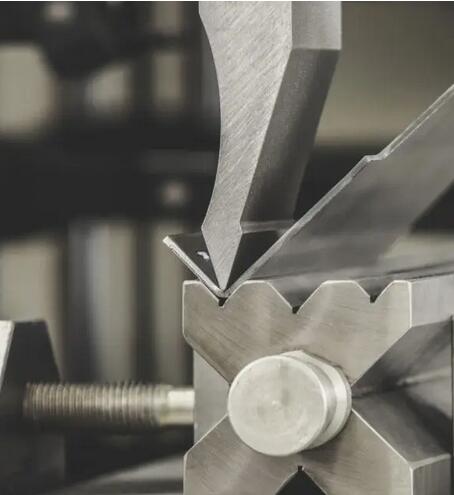

Select the minimum bend radius for the selected material. If the operator doesn’t follow the minimum radius, it can crack, break or deform the bend angle.
Don’t place holes or cutouts near the bend lines. Because this will weaken the material and can cause damage during the bending process.
Design the metal parts in a way so that the bending pressure spreads evenly on both sides. This will ensure uniform bending and prevent the bending from deformed.
Add bend relief on your metal parts. Bend reliefs are rounded corners that will control the pressure and save the metal bending from cracking.
Smooth or round off any sharp edges on the metal sheet as it can create crinkles or irregularities on the metal bend.
Include secondary operations like surface treatment, and coating in the designing process to improve the visual look of bent metal parts.
Mild steel has good strength and durability. It’s easy to mend this metal in different shapes and also compatible with various applications.
Alumunium is a lightweight and formable material. Aluminium deep drawing is used in the sheet metal bending process, especially when the manufacturer wants to reduce the weight of the application.
Copper is malleable and can easily be bent to any form. Copper deep drawing is more suitable for metal bending decorative items and electronic metal parts.
Nickel alloys are good at formability and this metal can be also bent at high temperatures. Without destroying the metal properties.
Brass is corrosion-resistant and gives an aesthetic look to the bent metal parts. Brass metal stamping is also good for doing metal bending for decorative items.
A Press bake is a sheet metal bending machine that uses punch and dies to bend the metal sheet. This machine is available in different sizes. Different sizes of press bake also differ in the capacity of the production.
The back gauge is a sheet metal bending tool that helps to hold the metal sheet in one position so that it doesn’t get displaced.
Roll benders are sheet metal bending machines that use a series of rollers for sheet metal bending. This machine is mainly used for manufacturing cylindrical or conical shapes of metal parts.
Using safety equipment like gear, gloves, and goggles are vital is the sheet metal bending process to ensure the safety of operators.
Sheet metal bending is a necessary process for the manufacturing and metal fabrication industry. Because producing metal parts for these industries required bent metal parts.
Sheet metal bending is required for manufacturing the body panel and structural components for vehicles. It also helps to create aesthetic metal parts for automobiles to improve the look of the vehicles.
Sheet metal bending is used to manufacture the metal parts for different electronic gadgets. This process is used to manufacture different electronic parts like electronic heat sink, and custom sheet metal enclosures.
Sheet metal bending is also a crucial process for the construction industry. This process helps to create architectural elements and roofing materials.
Sheet metal bending is a versatile manufacturing process that can be used in various industries. Compared to other metal fabrication processes, sheet metal bending is capable of producing more unique and aesthetically pleasing metal parts. Manufacturers also prefer this metal fabrication method for its flexibility of design and lower cost. By using modern and innovative technologies, sheet metal bending can manufacture strong and light metal parts.
